Full Hydraulic Extractor Simple Maintenance Hydraulic Static pile Extractor

Name: Full Hydraulic Extractor Simple Maintenance Hydraulic Static pile Extractor
Brand: SINOVO
Price: 1 USD

Buy cheap Full Hydraulic Extractor Simple Maintenance Hydraulic Static pile Extractor product

Brand Name : SINOVO

Model Number : SE1200/1500

Place of Origin : China

MOQ : 1 Set

Certification : CE ISO9001

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 30 sets per month

Delivery Time : 7-15 working days

Packaging Details : Export package

Weight : 6100kg

Number of lifting cylinders : 4pc

Maximum stroke of Cylinder : 1000mm

name : Full Hydraulic Extractor

model : SE1200/1500

brand : SINOVO

Contact Now

Hydraulic Pile Breaker Full Hydraulic Extractor

Hydraulic extractor is used for casing pipe follow-up the construction technology, also can be used to pull casing out in engineering accident, mounted to casing oscillator. It has some advantages: high speed of construction, structure concise, reliable, flexible feedback, operation easy and simple maintenance.

Full Hydraulic Extractor Simple Maintenance Hydraulic Static pile Extractor

B1200 Full Hydraulic Extractor

B1200 Full Hydraulic Extractor Technical Parameters

Item	Unit	Data	Remark
Number of lifting cylinders	pc	4
Maximum stroke of Cylinder	mm	1000
Number of clamping cylinders	pc	1
Clamp force	t	120
Casing extractor diameter	mm	1200
Rated pull force	t	320	30MPa
Weight	kg	6100
Overall dimension (L×W×H)	m	3x2.2x2	Transportation dimension

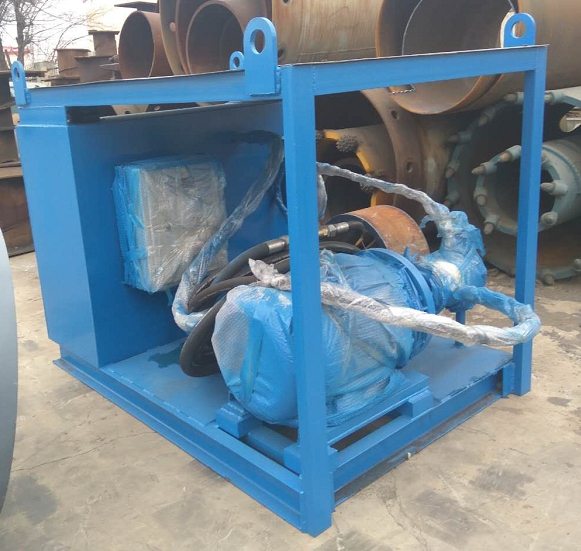

Hydraulic power station Technical Parameters

Item		Motor power station
Engine		Three-phase asynchronous motor
Power	Kw	45
Rotation speed	rpm	1500
Fuel delivery	L/min	150
Working pressure	Bar	300
Tank capacity	L	850
Overall dimension	mm	185013501150
Weight (excluding hydraulic oil)	Kg	1200

B1500 Full Hydraulic Extractor

B1500 Full Hydraulic Extractor Technical Parameters

Item	Unit	Data	Remark
Number of lifting cylinders	pc	4
Maximum stroke of Cylinder	mm	1000
Number of clamping cylinders	pc	1
Clamp force	t	200	≤30MPa
Casing extractor diameter	mm	1500
Rated pull force	t	500	30MPa
Weight	kg	8000
Overall dimension (L×W×H)	m	3.7x2.2x2.1	Transportation dimension

Hydraulic power station Technical Parameters

Item		Motor power station
Engine		Three-phase asynchronous motor
Power	Kw	45
Rotation speed	rpm	1500
Fuel delivery	L/min	150
Working pressure	Mpa	25
Tank capacity	L	850
Overall dimension	mm	192014001500
Weight (excluding hydraulic oil)	Kg	1500
