XYT-2B 300m Depth Trailer Type Geological Core Drilling Machine
Trailer Type Geological Core Drilling Rig
Series spindle type core drilling rigs are mounted on trailer with four hydraulic jacks, self-erect mast by hydraulic control, which is mainly used for core drilling, soil investigation, small water well and diamond bit drilling.
Main Features
(1) Compact size and light weight of mechanical transmission, larger diameter of rotating unit's spindle, long distance of support span and good rigidity, hexagonal kelly ensure the torque transfer.
(2) The trailer type geological core drilling rig is equipped with radial tyres, and four hydraulic supporting jacks, which is used for leveling the drill before working and strength the stability of rig.
(3) The hydraulic mast is composed of main mast and mast extension, which greatly improve working efficiency, and are very easy for transportation and operation. Compared with common core drilling rig, trailer type core drilling rigs have put off heavy derrick and save cost.
(4) With high and optimum rotating speed, the railer type geological core drilling rig can meet various requirements of small diameter diamond drilling, large diameter carbide drilling and all kinds of the engineering hole drilling.
(5) During the feeding process, the hydraulic system could adjust the feeding speed and pressure to meet requirements of drilling in various stratums.
(6) A bottom-hole pressure gauge is equipped to monitor the drilling pressure.
(7) Automobile type transmission and clutch is equipped to achieve good commonality and easy maintenance.
(8) Centralized control panel makes operation convenient.
(9) The octagonal structure spindle is more suitable to transmission in large torque.
(10)High and optimum rotating speed enables the drilling rid to satisfy requirements of various drillings such as small diameter diamond drilling, large diameter carbide drilling and all kinds of engineering hole drillings.
Technical Specifications for XYT-2B trailer geological core drilling rig:
| Fundamental parameters |
| | Unit | XYT-2B |
| Drilling depth | m | 300 |
| Drilling diameter | mm | 80-520 |
| Rod diameter | mm | 50/60 |
| Drilling angle | ° | 70-90 |
| Overall dimension | mm | 4460x1890x2250 |
| Rig weight | kg | 3320 |
| Skid | | / |
| Rotation unit |
| Spindle speed |
| Co-rotation | r/min | 70,146,179,267,370,450,677,1145, |
| Reverse rotation | r/min | 70, 155 |
| Spindle stroke | mm | 550 |
| Spindle pulling force | KN | 68 |
| Spindle feeding force | KN | 46 |
| Maximum output torque | N.m | 2550 |
| Hoist |
| Lifting speed | m/s | 0.64,1.33, 2.44 |
| Lifting capacity | KN | 25, 15, 7.5 |
| Cable diameter | mm | 15 |
| Drum diameter | mm | 200 |
| Brake diameter | mm | 350 |
| Brake band width | mm | 74 |
| Frame moving device |
| Frame moving stroke | mm | 420 |
| Distance away from hole | mm | 300 |
| Hydraulic oil pump |
| Type | | CB-25 |
| Rated flow | L/min | 40 |
| Rated pressure | Mpa | 8 |
| Rated rotation speed | r/min | |
| Power unit |
| Diesel engine |
| Type | | N485Q |
| Rated power | KW | 24.6 |
| Rated speed | r/min | 1800 |
Product Tags:
|
|

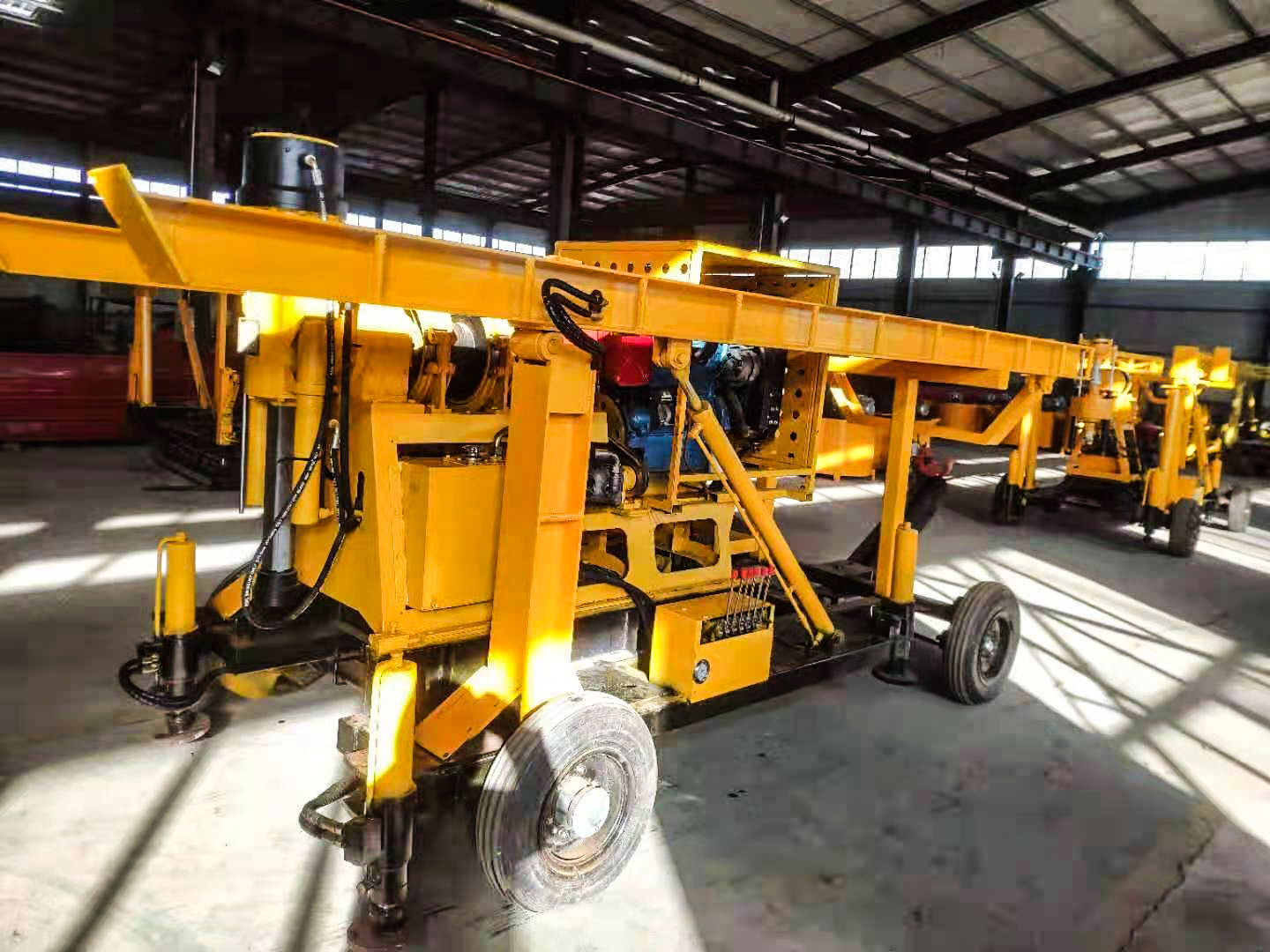

XYT-2B 300m Depth Trailer Type Geological Core Drilling Machine Images
|
